Silicon Carbide Ceramic Bulletproof Plate NIJ 4

Brand Name : HB

Model Number : #1

Certification : ISO

Place of Origin : China

MOQ : 20kg

Price : USD21/kg

Payment Terms : T/T, D/P, D/A, Western Union, MoneyGram, L/C

Supply Ability : 1t/month

Delivery Time : 5~8 work days

Packaging Details : vaccum pack

Contact Now

Silicon Carbide Ceramic Bulletproof Plate NIJ 4

We provide Boron Carbide(B4C), Silicon Carbide(SiC), Aluminium oxide(Al2O3) material ceramic armour plates.

Ceramic Armour Plates(Sets)

We provide Silicon Carbide(SiC), Boron Carbide(B4C), and Aluminium Oxide(Al2O3) bulletproof ceramic armour plates manufacturing material sets; with these sets you only need to compound it with a piece of UHMWPE board, then you will have an exceeded NIJ IV level bulletproof vest insert plate.

Specifications:

	SiC	B4C
Density	3.13~3.15g/cm3	2.46~2.49g/cm3
Hardness	HV2479~3099	HV2600
Flexural Strength	432~512 Mpa	330Mpa
Compressive Strength	3970 Mpa	4100Mpa

Silicon Carbide Ceramic Bulletproof Plate NIJ 4 — B4C / SiC Hexagonal Bulletproof Ceramic Armour Plates (Set)

Al2O3 Purity : 99% ; Density : 3.8~3.9 g/cm3

Silicon Carbide (SiC), is considered to be ideal material to manufacture body protection armour that stopping rifle bullets due to their impressive strength and hardiness. SiC can be combined with backing materials (for instance UHMWPE board) and inserted into protective vests to provide vital body protection against any high-velocity projectiles.

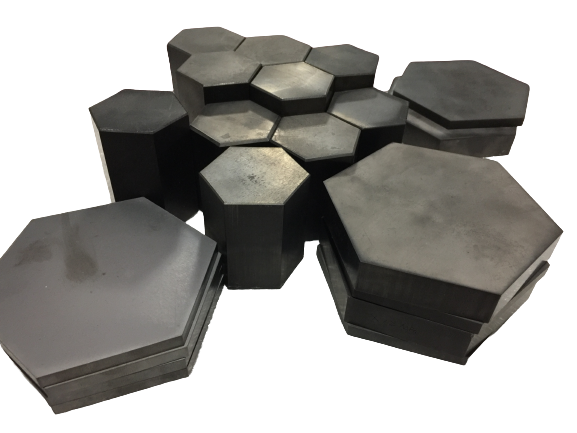

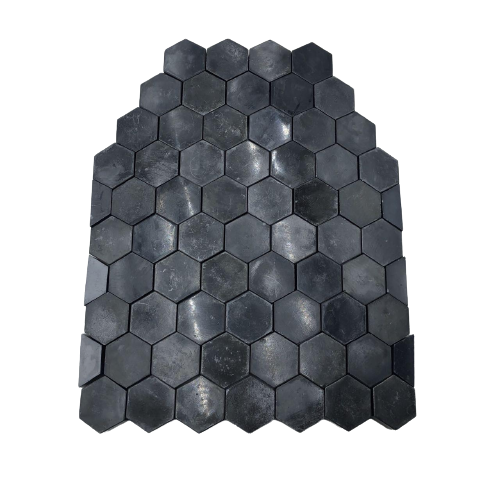

B4C / SiC Hexagonal Bulletproof Ceramic Armour Plates

It’s a manufacturing material for produce armour products.

B4C / SiC Hexagonal Bulletproof Ceramic Armour Plates(Extra Thickness)

Regular sizes: SW(20mm, 30mm, 40mm) Thickness(2~60mm); Other sizes are customisable.

B4C / SiC Cylinder Bulletproof Armour Tiles

It’s a customised product, we honourly supply customised service .

B4C / SiC Sqaure Bulletproof Ceramic Armour Plates

Regular Sizes: Width(50mm), Length(50mm), Thickness(2~20mm); Other sizes are customisable.
